R class steam locomotives
					wheel arrangement: 4-6-4
		R 707 in "as preserved" condition in 1974

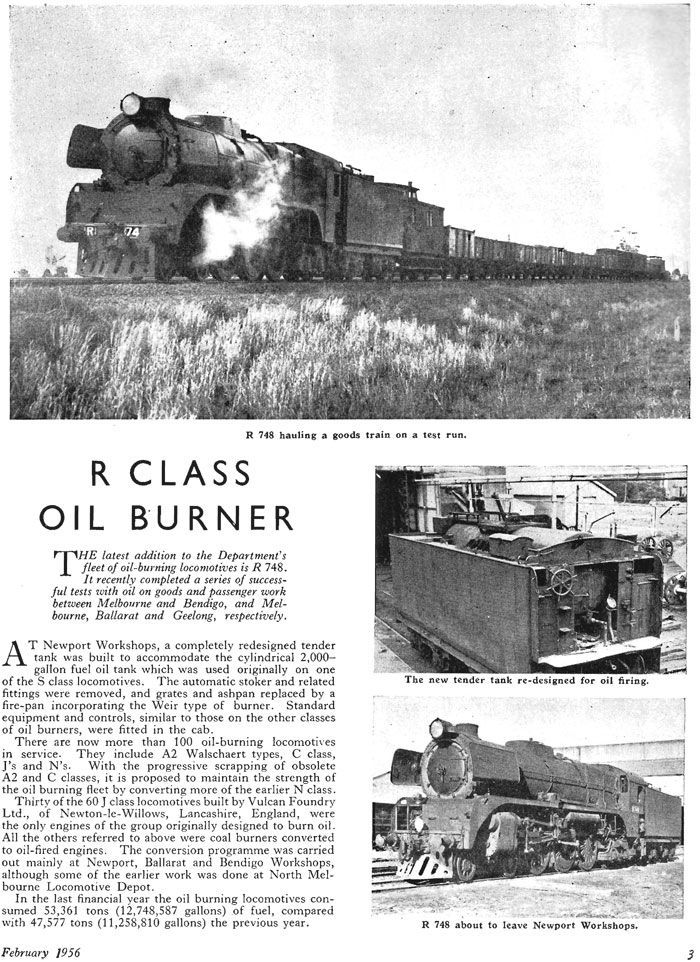

				Designed as a passenger loco to replace 40 year old A2's that were the backbone of passenger haulage, they were only used in actual passenger service for a relatively short period . Dieselisation caused the R's to be relegated to less suitable duties than those for which they were designed. Apart from later day enthusiast train work, this class was in fact a very short lived class in the VR steam picture. Only two R's, 719 748, were converted to oil burners. R707 was fitted with pulverised brown coal equipment for a time.
Number in Class 70 Number group 700 - 769 Construction period 1951- 1952 In service 1951 - Where built Glasgow Tractive effort 32,080 lb GENERAL ARRANGEMENT   Downloads as a 26 MB pdf.

ABOVE: R 703 is unloaded from "NORDIC" at Williamstown May 31 1951. (PROV photo)

ABOVE: R 701, not long after being placed in service. (PROV photo)

ABOVE: R 769 is unloaded from "Hector" Feb 1953 (PROV photo)

---

please email me with any corrections,comments or questions

page last modified8/23/12
