QS special well wagons

Number in Class 2
Number group 1 - 2
Construction period see text
In service 1941 - end
1979 recode QS 1 VFHF

QS 2 VFHA

Where built Newport
Diagram


QS 1 was never in service during the period I was photographing, it was a body without bogies stored in the weeds at Newport. It was built in 1941. It appears to have been built to transport new stators for the reconditioning of the Newport power station in the early 1940's.

QS 2 was built in 1962 to transport extremely large, heavy loads to Cudgewa for use in the Snowy Mountains power generation scheme. As shown in the photos it could be configured with 4 x 2 axle bogies (max load 120 tons) or 4 x 3 axle bogies (max load 170 tons) The 3 axle bogies were from Sclass steam loco tenders. These bogies were also used under the QH flat wagons. As there were 4 QH's but only 4 sets of bogies it meant that when QS 2 was using the 3 axle bogies only 2 QH's could be in service.

In the 70's QS 2 was used occasionaly for loads to Yallourn. (page 86 of John Dare's book "A Changing Decade" shows one such working)

When hauling transformers the wagon was severely restricted in speed

ABOVE & BELOW: QS 1 just after being built, prior to final painting. 1941 (PROV photo)



ABOVE & BELOW: QS 1 at Newport workshops, July 1961.



ABOVE: The body of QS 1 at Newport, July 1982
Photo courtesy Peter J. Vincent

ABOVE: QS 2 with its 3 axle (ex S class steam loco tender) bogies

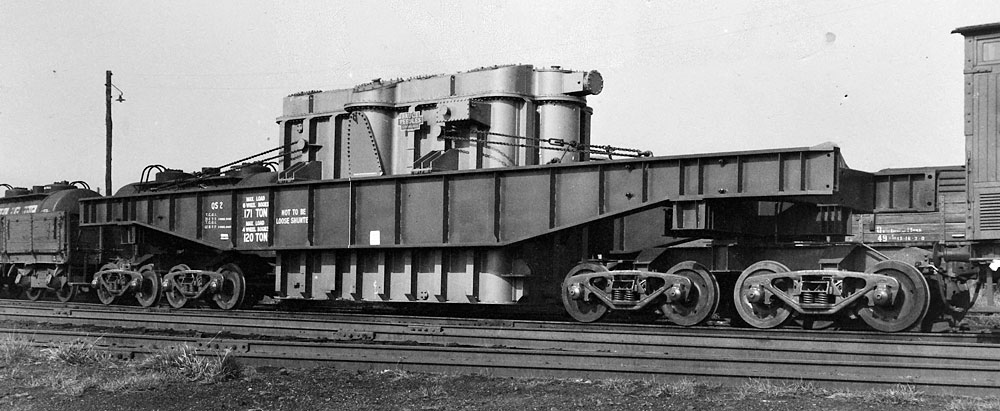

ABOVE: QS 2 loaded with a 169 ton transformer at Appleton dock, May 15 1968 Official VR photo PR 2054

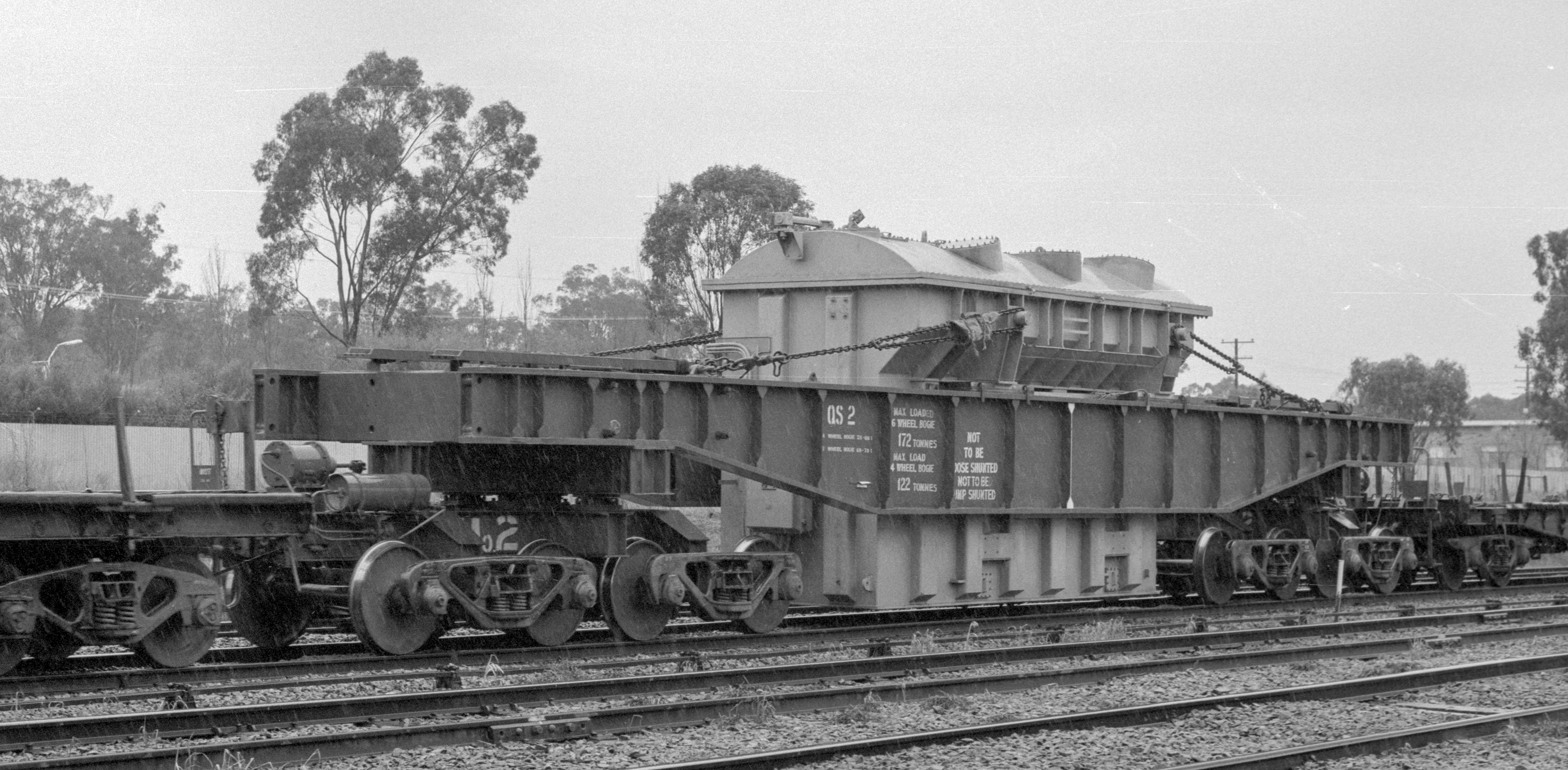

ABOVE: QS 2 with a transformer going to Redcliffs (see article below) Aug 1962
Official VR photo RS 1559

QS 2 with an out of gauge load. West Tower, Nov. 1977 Photo courtesy Geoff Winkler


The photo below shows QS 1 , it is from the March 1953 VR Newsletter

BELOW: Article from the August 1963 VR newsletter.


ABOVE: QS 2 being re-assembled at Newport after being fitted with 3 axle bogies


ABOVE: Closeup of the 3 axle bogie that came from S class steam loco tenders.

ABOVE: Victoria Dock Aug 5 1974. (VR photo PR8079)
